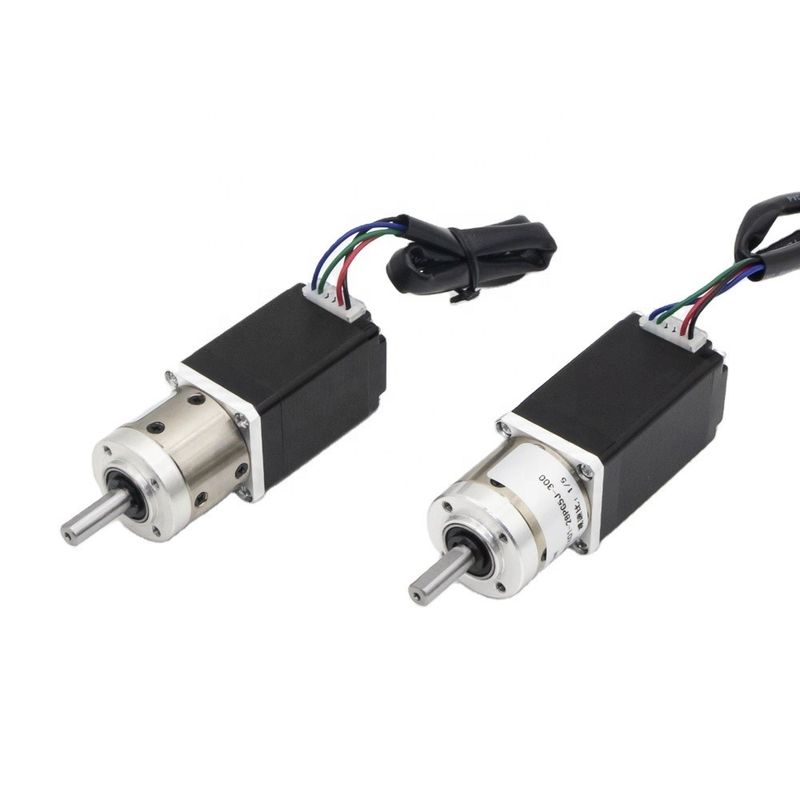

0.67-0.8A Geared Reducer Stepper Motor With Planetary Gearbox Max.Ratio 1 369 For Your

Name: 0.67-0.8A Geared Reducer Stepper Motor With Planetary Gearbox Max.Ratio 1 369 For Your
Brand: Chongqing Umot Technology Co., Ltd.
SKU: 28HS0405/2401/5401/7401
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Chongqing, China

Brand Name: Umot

Certification: CCC CE RoHS

Model Number: 28HS0405/2401/5401/7401

Payment & Shipping Terms

Minimum Order Quantity: 5 pieces

Price: $31.99/pieces 5-99 pieces

Get Best Price

Product Details

Product Description

Highlight:

Warranty:	1 Year	Phase:	2
Type:	Hybrid	Current / Phase:	0.8/0.7/0.67A
Product Name:	Nema 11 Geared Stepper Motor	Motor Length:	25/32/45/52mm
Ring Material:	Metal	Reduction Ratio:	3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1/189:1/264:1/369:1
Number Of Gear Trains:	1-4	Bearing At Output:	Ball Bearings
Gearbox Torque:	0.083-4N.m	Current:	0.8/0.67/0.7A
Efficiency:	66-90%

Warranty:	1 Year
Phase:	2
Type:	Hybrid
Current / Phase:	0.8/0.7/0.67A
Product Name:	Nema 11 Geared Stepper Motor
Motor Length:	25/32/45/52mm
Ring Material:	Metal
Reduction Ratio:	3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1/189:1/264:1/369:1
Number Of Gear Trains:	1-4
Bearing At Output:	Ball Bearings
Gearbox Torque:	0.083-4N.m
Current:	0.8/0.67/0.7A
Efficiency:	66-90%

0.67-0.8A Geared Reducer Stepper Motor With Planetary Gearbox Max.Ratio 1 369 For Your

Product Name	Nema 11 geared stepper motor
Warranty	1 year
Place of Origin	China
Brand Name	Umot
Model Number	28HS0405/2401/5401/7401
Phase	2 Phase
Type	Hybrid
Current / Phase	0.8/0.7/0.67A
Certification	CCC, ce, ISO
Motor length	25/32/45/52mm
Ring material	Metal
Reduction ratio	3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1/189:1/264:1/369:1
Number of gear trains	1-4
Efficiency	66-90%
Bearing at output	Ball bearings
Gearbox torque	0.083-4N.m
