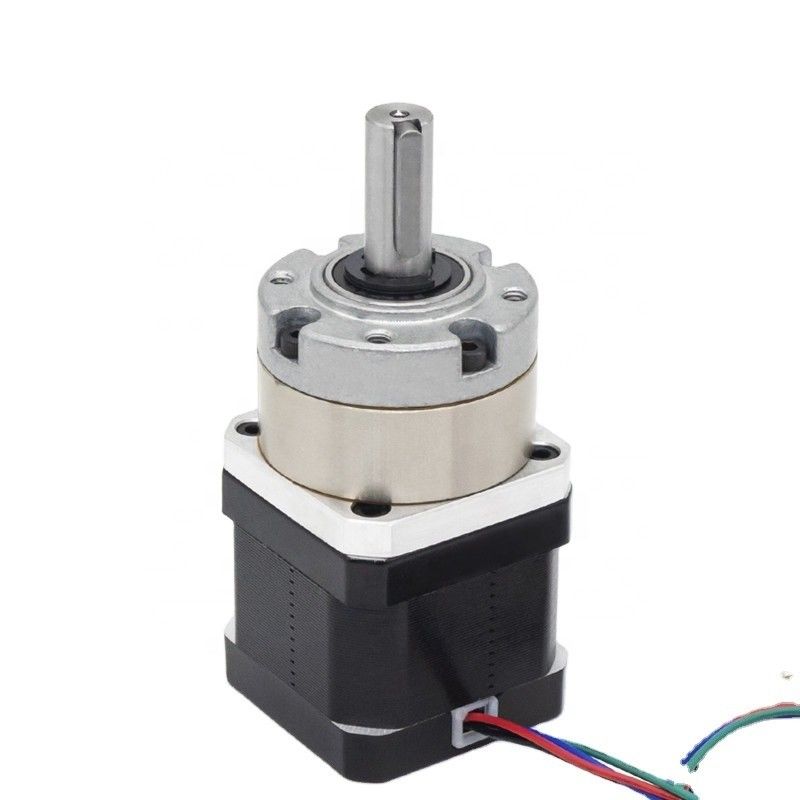

2.93/2.5V Nema 17 Geared Stepper Motor With Planetary Gearbox 1 369 Max.Ratio 270/380mN.m

Name: 2.93/2.5V Nema 17 Geared Stepper Motor With Planetary Gearbox 1 369 Max.Ratio 270/380mN.m
Brand: Umot
SKU: 42HS
Price: 40.19 USD
Availability: InStock
Rating: 4.9 (199 reviews)

Product Details

Place of Origin: Chongqing, China

Brand Name: Umot

Certification: CE, RoHS

Model Number: 42HS

Payment & Shipping Terms

Minimum Order Quantity: 5 pieces

Price: $40.19/pieces 5-99 pieces

Packaging Details: Foam+Hard Carton or Wooden Case+Waterproof film

Get Best Price

Product Details

Product Description

Highlight:

Warranty:	3months-1year	Phase:	2
Type:	Hybrid	Current / Phase:	1.33A/1.5A
Product Name:	Geared Stepper Motor	Motor Size:	Nema 17
Motor Length:	34/40mm	Torque For Gearbox:	0.902N.m-10.0N.m
Reduction Ratio:	3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1/189:1/264:1/369:1	Rated Current:	1.33/1.5A
Rated Voltage:	2.93/2.5V	Rotor Inertia:	30/40g.cm2
Efficiency:	66%-90%

Warranty:	3months-1year
Phase:	2
Type:	Hybrid
Current / Phase:	1.33A/1.5A
Product Name:	Geared Stepper Motor
Motor Size:	Nema 17
Motor Length:	34/40mm
Torque For Gearbox:	0.902N.m-10.0N.m
Reduction Ratio:	3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1/189:1/264:1/369:1
Rated Current:	1.33/1.5A
Rated Voltage:	2.93/2.5V
Rotor Inertia:	30/40g.cm2
Efficiency:	66%-90%

2.93/2.5V Nema 17 Geared Stepper Motor With Planetary Gearbox 1 369 Max.Ratio 270/380mN.m

High Torque Mini Geared Stepper Motor Nema 17 With Gear 12v Hybrid Micro Nema 17 Stepper Motor With Gearbox

Planetary Gear Stepping Motor:
Precision high-end upgrade with Nema8, Nema 11, Nema14, Nema 17, Nema23, Nema 24
stepper motor; low noise , low vibration , firm and durable. Increase torque at low speed.
Reduction ratio：1:3.7 ， 1:5.2 ， 1:14 ， 1:19 ，1:27 ，1:51 ， 1：71 ，1:100 ，1:139 ， 1:189 ，1:264 ， 1:369 ，And 48 hours delivery , in stock .
Application:
Automation control, medical equipment, textile machinery,and packaging machinery fiels. Not only in the field of automation industry, it also has a good use status in the home. Products with low speed and inertia are often seen: electric curtains,electric shutters, etc.

Ring material	Metal
Bearing at output	Ball bearing
Max.Radial load	200N
Max shaft axial load	100N
Radial play of shaft	less than or equal to 0.06mm
Axial play of shaft	less than or equal to0.3mm
Backlash at no-load	first-level ≦1°，Secend ≦1.2°，Third ≦1.5°
