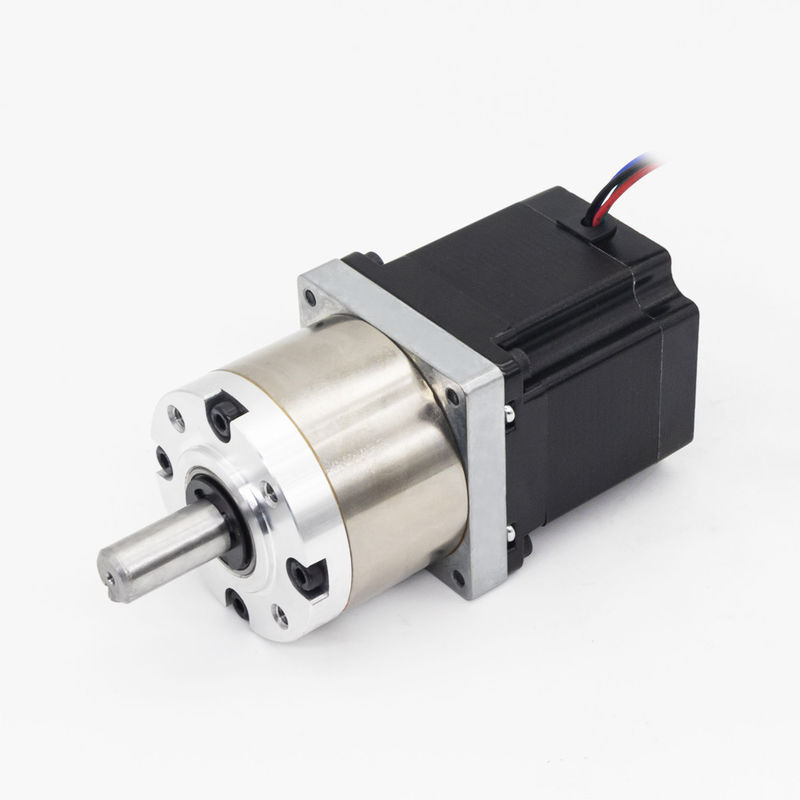

High Torque Nema 23/24 Planetary Geared Motor for Solar Power Sliding Gate Operation

Name: High Torque Nema 23/24 Planetary Geared Motor for Solar Power Sliding Gate Operation
Brand: Chongqing Umot Technology Co., Ltd.
SKU: 57HS5417/60hs5405
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Chongqing, China

Brand Name: Umot

Model Number: 57HS5417/60hs5405

Payment & Shipping Terms

Minimum Order Quantity: 2 pieces

Price: $59.00 - $89.00/pieces

Get Best Price

Product Details

Product Description

Highlight:

Warranty:	1 Year	Phase:	2
Type:	Hybrid	Current / Phase:	2A/3.5A
Motor Length:	57x55/60x55mm	Ring Material:	Metal
Reduction Ratio:	3.6/4.3/13/15/18/23/47/55/65/77/96/121/153/187:1	Number Of Gear Trains:	1-4
Efficiency:	66-90%	Bearing At Output:	Ball Bearings
Max Radial Load(10mm From Flange):	300N	Max Shaft Axial Load:	200N
Current:	2A/3.5A

Warranty:	1 Year
Phase:	2
Type:	Hybrid
Current / Phase:	2A/3.5A
Motor Length:	57x55/60x55mm
Ring Material:	Metal
Reduction Ratio:	3.6/4.3/13/15/18/23/47/55/65/77/96/121/153/187:1
Number Of Gear Trains:	1-4
Efficiency:	66-90%
Bearing At Output:	Ball Bearings
Max Radial Load(10mm From Flange):	300N
Max Shaft Axial Load:	200N
Current:	2A/3.5A

High Torque Nema 23/24 Planetary Geared Motor for Solar Power Sliding Gate Operation

Product Paramenters

Warranty	1year
Place of Origin	China
Brand Name	Umot
Phase	2
Type	Hybrid
Certification	CCC, ce, ISO
Product name	Planetary Gearbox Stepper Motor
Load range	3N.m-30N.m
Color	Silver
Bearing at output	Ball bearings
Number of gear trains	1-4
Reduction ratio	3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1/189:1/264:1/369:1
Efficiency	66%-90%

Details Images
