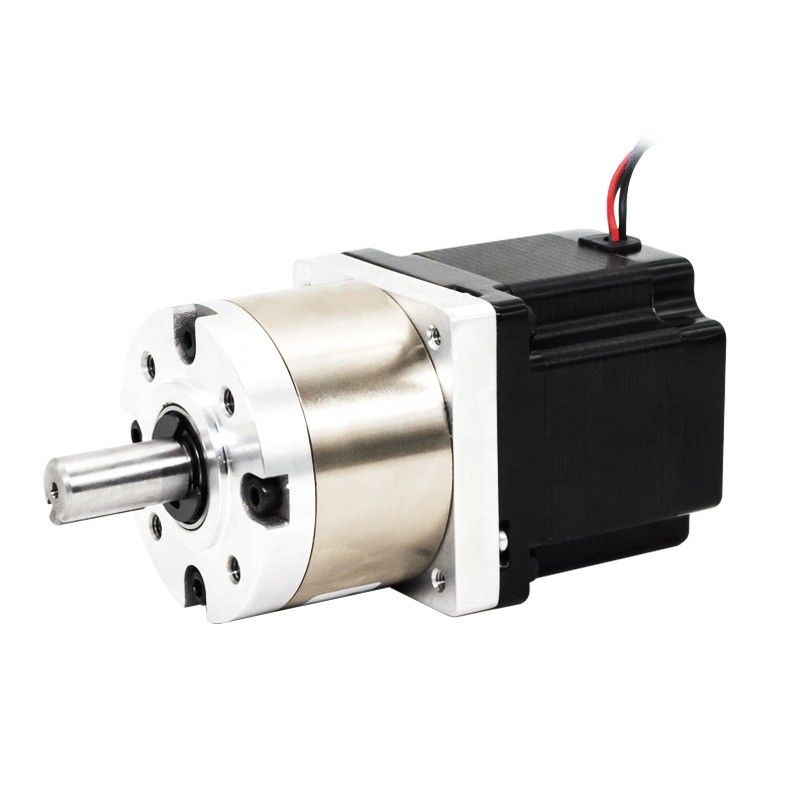

High Torque Nema24 60mm Stepper Motor with Planetary Gearbox and 3.5A Current / Phase
High Torque Nema24 60mm Stepper Motor with Planetary Gearbox and 3.5A Current / Phase
High Torque Nema24 60mm Stepper Motor with Planetary Gearbox and 3.5A Current / Phase
High Torque Nema24 60mm Stepper Motor with Planetary Gearbox and 3.5A Current / Phase
High Torque Nema24 60mm Stepper Motor with Planetary Gearbox and 3.5A Current / Phase
High Torque Nema24 60mm Stepper Motor with Planetary Gearbox and 3.5A Current / Phase
High Torque Nema24 60mm Stepper Motor with Planetary Gearbox and 3.5A Current / Phase

High Torque Nema24 60mm Stepper Motor with Planetary Gearbox and 3.5A Current / Phase

Product Details

Place of Origin: China

Brand Name: Umot

Certification: RoHS

Model Number: 60HS5405

Payment & Shipping Terms

Minimum Order Quantity: 2 pieces

Price: $68.20 - $74.80/pieces

Get Best Price

Product Details

Product Description
Highlight:
Warranty:
3months-1year
Phase:
2
Type:
Hybrid
Current / Phase:
3.5A
Motor Length:
60x55mm
Ring Material:
Metal
Reduction Ratio:
3.6/4.3/13/15/18/23/47/55/65/77/96/121:1
Number Of Gear Trains:
1-3
Bearing At Output:
Ball Bearings
Max Radial Load(10mm From Flange):
300N
Max Shaft Axial Load:
200N
Current:
3.5A
Warranty:
3months-1year
Phase:
2
Type:
Hybrid
Current / Phase:
3.5A
Motor Length:
60x55mm
Ring Material:
Metal
Reduction Ratio:
3.6/4.3/13/15/18/23/47/55/65/77/96/121:1
Number Of Gear Trains:
1-3
Bearing At Output:
Ball Bearings
Max Radial Load(10mm From Flange):
300N
Max Shaft Axial Load:
200N
Current:
3.5A
High Torque Nema24 60mm Stepper Motor with Planetary Gearbox and 3.5A Current / Phase
High Torque Nema24 60mm Stepper Motor with Planetary Gearbox and 3.5A Current / Phase 0
Products Description
item
value
Warranty
3months-1year
Place of Origin
China
Brand Name
Umot
Model Number
60HS5405
Phase
2
Type
Hybrid
Current / Phase
3.5A
Certification
CCC, ce, RoHS
Motor length
60x55mm
Ring material
Metal
Reduction ratio
3.6/4.3/13/15/18/23/47/55/65/77/96/121:1
Number of gear trains
1-3
Efficiency
73-90%
Bearing at output
Ball bearings
Max radial load(10mm from flange)
300N
Max shaft axial load
200N
Voltage
2.98A
Gearbox length
37.8-60.8mm
High Torque Nema24 60mm Stepper Motor with Planetary Gearbox and 3.5A Current / Phase 1
High Torque Nema24 60mm Stepper Motor with Planetary Gearbox and 3.5A Current / Phase 2
High Torque Nema24 60mm Stepper Motor with Planetary Gearbox and 3.5A Current / Phase 3
High Torque Nema24 60mm Stepper Motor with Planetary Gearbox and 3.5A Current / Phase 4
High Torque Nema24 60mm Stepper Motor with Planetary Gearbox and 3.5A Current / Phase 5
High Torque Nema24 60mm Stepper Motor with Planetary Gearbox and 3.5A Current / Phase 6
High Torque Nema24 60mm Stepper Motor with Planetary Gearbox and 3.5A Current / Phase 7
