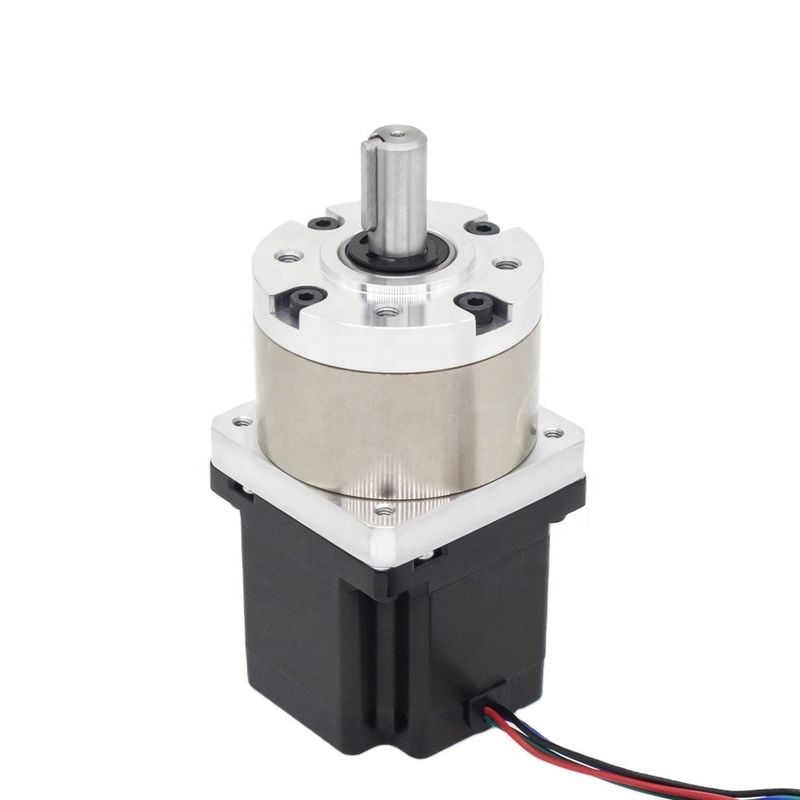

3.5A Current Nema 24 Planetary Geared Stepper Motor With Max.Ratio 1 187 For UAVS

Name: 3.5A Current Nema 24 Planetary Geared Stepper Motor With Max.Ratio 1 187 For UAVS
Brand: Chongqing Umot Technology Co., Ltd.
SKU: 60HS5405
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Umot

Certification: RoHS CE

Model Number: 60HS5405

Payment & Shipping Terms

Minimum Order Quantity: 5 pieces

Price: $58.13/pieces 5-99 pieces

Get Best Price

Product Details

Product Description

Highlight:

Warranty:	1year	Phase:	2
Type:	Hybrid	Current / Phase:	3.5A
Product Name:	Nema 24 Geared Stepper Motor	Motor Length:	60x55mm
Ring Material:	Metal	Reduction Ratio:	3.6/4.3/13/15/18/23/47/55/65/77/96/121:1
Number Of Gear Trains:	1-4	Bearing At Output:	Ball Bearings
Max Radial Load(10mm From Flange):	300N	Max Shaft Axial Load:	200N
Current:	3.5A

Warranty:	1year
Phase:	2
Type:	Hybrid
Current / Phase:	3.5A
Product Name:	Nema 24 Geared Stepper Motor
Motor Length:	60x55mm
Ring Material:	Metal
Reduction Ratio:	3.6/4.3/13/15/18/23/47/55/65/77/96/121:1
Number Of Gear Trains:	1-4
Bearing At Output:	Ball Bearings
Max Radial Load(10mm From Flange):	300N
Max Shaft Axial Load:	200N
Current:	3.5A

3.5A Current Nema 24 Planetary Geared Stepper Motor With Max.Ratio 1 187 For UAVS

Item	Value
Product name	Nema 24 Geared Stepper Motor
Model number	60HS5405
Phase	2 Phase
Motor type	Hybrid
Current	3.5A
Certification	CCC, ce, RoHS
Motor length	60x55mm
Ring material	Metal
Reduction ratio	3.6/4.3/13/15/18/23/47/55/65/77/96/121/153/187:1
Number of gear trains	1-4
Efficiency	73-90%
Bearing at output	Ball bearings
Max radial load(10mm from flange)	300N
Max shaft axial load	200N
Voltage	2.98V
