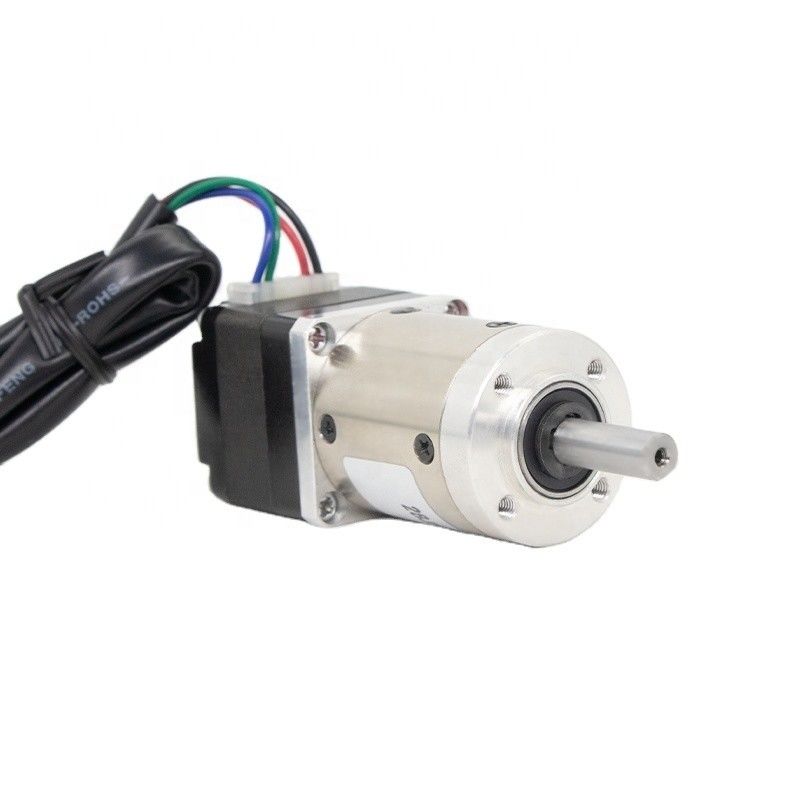

Nema11 Hybrid Stepper Motor With Gearbox 1 369 Ratio 45/52mm Length 95/110mN.m Holding Torque

Name: Nema11 Hybrid Stepper Motor With Gearbox 1 369 Ratio 45/52mm Length 95/110mN.m Holding Torque
Brand: Chongqing Umot Technology Co., Ltd.
SKU: 28HS5401/28HS7401
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Chongqing, China

Brand Name: Umot

Model Number: 28HS5401/28HS7401

Payment & Shipping Terms

Minimum Order Quantity: 5 pieces

Price: $31.96/pieces 5-99 pieces

Packaging Details: Foam+Hard Carton or Wooden Case+Waterproof film

Get Best Price

Product Details

Product Description

Highlight:

Warranty:	1year	Phase:	2
Type:	Hybrid	Current / Phase:	0.7A/0.67A
Product Name:	Nema 11 Geared Stepper Motor	Product Brand:	Umot
Torque:	95m.Nm/110m.Nm	Motor Length:	28mmx45mm/ 28mmx52mm
Motor Weight:	0.25kg	Rated Voltage:	4.9V/6.03V
Color:	Black Silver	Ring Material:	Metal
Reduction Ratio:	3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1/189:1/264:1/369:1	Load Range:	1.2N.m-4.0N.m

Warranty:	1year
Phase:	2
Type:	Hybrid
Current / Phase:	0.7A/0.67A
Product Name:	Nema 11 Geared Stepper Motor
Product Brand:	Umot
Torque:	95m.Nm/110m.Nm
Motor Length:	28mmx45mm/ 28mmx52mm
Motor Weight:	0.25kg
Rated Voltage:	4.9V/6.03V
Color:	Black Silver
Ring Material:	Metal
Reduction Ratio:	3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1/189:1/264:1/369:1
Load Range:	1.2N.m-4.0N.m

Nema11 Hybrid Stepper Motor With Gearbox 1 369 Ratio 45/52mm Length 95/110mN.m Holding Torque

28mm Nema11 Planetary Stepper Gear Motor Gearbox Micro Geared Stepper Motor With Gearbox Reduction Gear

Product Name	Nema 11 Gearbox Stepper Motor
Warranty	1 year
Place of Origin	China
Brand Name	Umot
Model Number	28HS5401/7401
Phase	2 Phase
Motor Type	Hybrid
Holding Torque	95/110mN.m
Rated Voltage	4.9/6.03V
Rated Current	0.7/0.67A
Certification	CCC, ce, ISO
Motor length	45/52mm
Ring material	Metal
Reduction ratio	3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1/189:1/264:1/369:1
Number of gear trains	1-4
Efficiency	66-90%
Bearing at output	Ball bearings
Gearbox torque	0.317-4N.m
