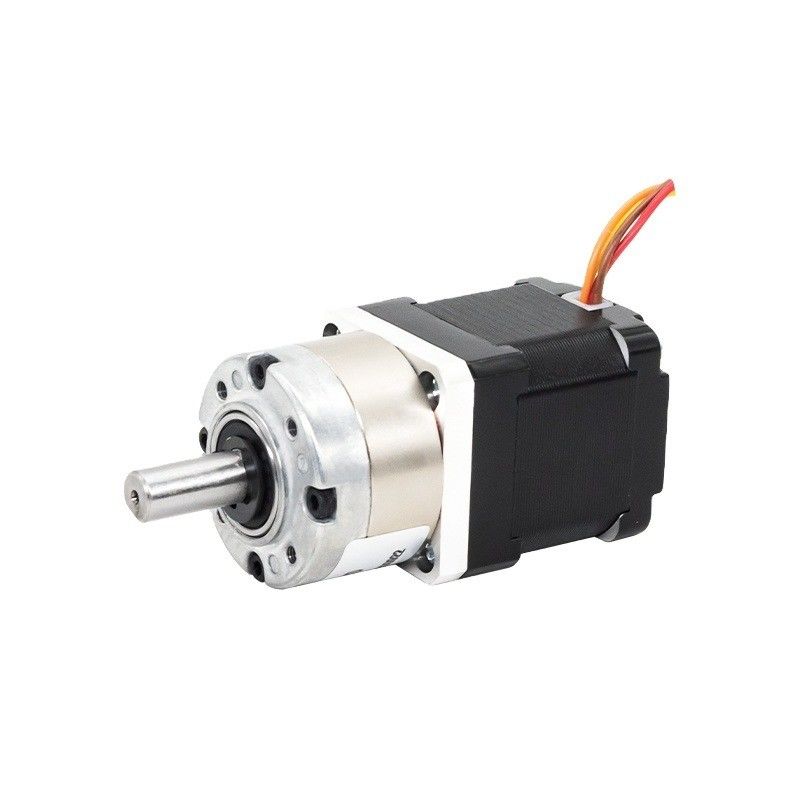

Nema 14 Micro Planetary Geared Stepper Motor With Reducer Gearbox Max.Ratio 1 139 For UAVS

Name: Nema 14 Micro Planetary Geared Stepper Motor With Reducer Gearbox Max.Ratio 1 139 For UAVS
Brand: Chongqing Umot Technology Co., Ltd.
SKU: 35HSH2408/5401
Price: 18.00 USD
Availability: InStock

Product Details

Place of Origin: Chongqing, China

Brand Name: Umot

Model Number: 35HSH2408/5401

Payment & Shipping Terms

Minimum Order Quantity: 5 pieces

Price: $31.69/pieces 5-99 pieces

Get Best Price

Product Details

Product Description

Highlight:

Warranty:	1 Year	Phase:	2
Type:	Hybrid	Current / Phase:	1A
Product Name:	Nema 14 Geared Stepper Motor	Motor Length:	35x28mm/35x39mm
Gearbox Torque:	0.668-6N.m	Current:	1A
Holding Torque:	200/250m.Nm	Ring Material:	Metal
Number Of Gear Trains:	1-4	Reduction Ratio:	3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1
Efficiency:	66-90%	Bearing At Output:	Ball Bearings

Warranty:	1 Year
Phase:	2
Type:	Hybrid
Current / Phase:	1A
Product Name:	Nema 14 Geared Stepper Motor
Motor Length:	35x28mm/35x39mm
Gearbox Torque:	0.668-6N.m
Current:	1A
Holding Torque:	200/250m.Nm
Ring Material:	Metal
Number Of Gear Trains:	1-4
Reduction Ratio:	3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1
Efficiency:	66-90%
Bearing At Output:	Ball Bearings

Nema 14 Micro Planetary Geared Stepper Motor With Reducer Gearbox Max.Ratio 1 139 For UAVS

35mm Geared Planetary Gear Motors Nema 14 Micro Geared Stepper Motor With Reducer Gearbox

Item	Value
Product name	Nema 14 Planetary gearbox stepper motor
Place of origin	China
Brand name	Umot
Model number	35HSH2408/35HSH5401
Phase	2 Phase
Type	Hybrid
Rated current	1.0A
Certification	CCC, ce, RoHS
Step angle	1.8°
Rated voltage	4.5V
Motor weight	0.15/0.25kg
Motor length	35x28mm/35x39mm
Load range	1.8N.m-6.0N.m
Efficiency	73%-90%
