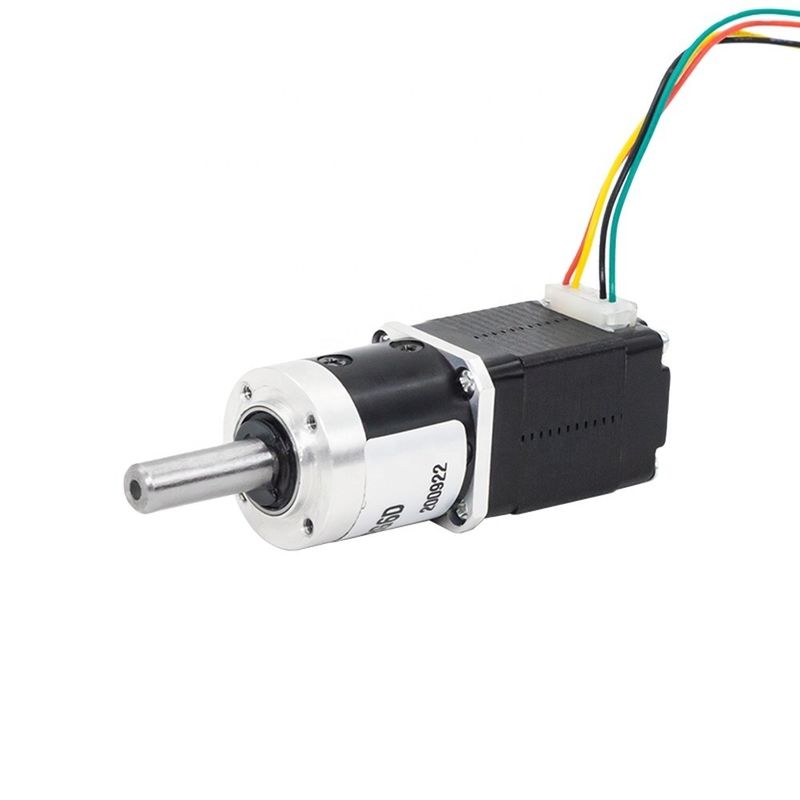

Precision Nema 8 Planetary Gearbox Geared Reducer Stepper Motor for Medical Equipment

Name: Precision Nema 8 Planetary Gearbox Geared Reducer Stepper Motor for Medical Equipment
Brand: Chongqing Umot Technology Co., Ltd.
SKU: 20HS1405/6401
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Chongqing, China

Brand Name: Umot

Certification: CCC CE RoHS

Model Number: 20HS1405/6401

Payment & Shipping Terms

Minimum Order Quantity: 2 pieces

Price: $39.48/pieces 2-99 pieces

Packaging Details: Foam+Hard Carton or Wooden Case+Waterproof film

Get Best Price

Product Details

Product Description

Highlight:

Warranty:	1year	Phase:	2
Type:	Hybrid	Current / Phase:	0.5/0.8A
Product Name:	Nema 8 Planetary Gearbox Stepper Motor	Motor Length:	20X30mm/20x41mm
Load Range:	0.6N.m-2.0N.m	Motor Weight:	0.06/0.1kg
Bearing At Output:	Ball Bearings	Number Of Gear Trains:	1-4
Reduction Ratio:	3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1/189:1/264:1/369:1	Rated Current:	0.5/0.8A
Rated Voltage:	3.25/4.40V

Warranty:	1year
Phase:	2
Type:	Hybrid
Current / Phase:	0.5/0.8A
Product Name:	Nema 8 Planetary Gearbox Stepper Motor
Motor Length:	20X30mm/20x41mm
Load Range:	0.6N.m-2.0N.m
Motor Weight:	0.06/0.1kg
Bearing At Output:	Ball Bearings
Number Of Gear Trains:	1-4
Reduction Ratio:	3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1/189:1/264:1/369:1
Rated Current:	0.5/0.8A
Rated Voltage:	3.25/4.40V

Precision Nema 8 Planetary Gearbox Geared Reducer Stepper Motor for Medical Equipment

Small Size 20mm Mini Gear Reducer Nema 8 Planetary Gearbox Geared Stepper Motor With Gear Reducer

Product name	Nema 8 Planetary Gearbox Stepper Motor
Brand Name	Umot
Model Number	20HS1405/6401
Phase	2 Phase
Type	Hybrid
Rated Current	0.5/0.8A
Rated Voltage	3.25/4.40V
Motor length	20mmX20mm
Load range	0.6N.m-2.0N.m
Weight	0.06/0.1kg
Color	Silver
Bearing at output	Ball bearings
Number of gear trains	1-4
Reduction ratio	3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1/189:1/264:1/369:1
Efficiency	66%-90%
