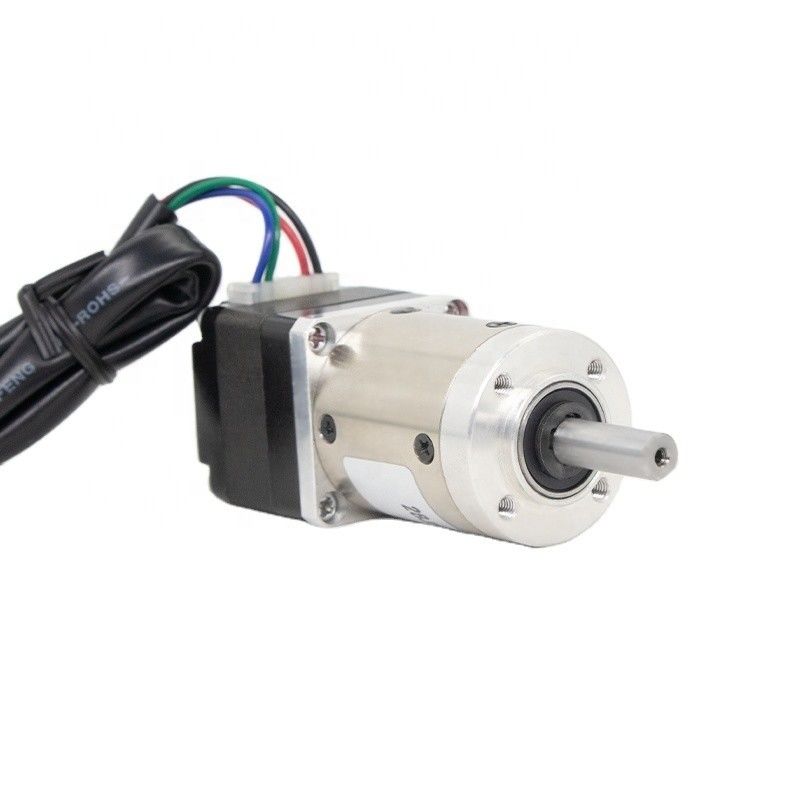

Nema 11 Planetary Geared Stepper Motors With Gearbox Reducer Load Range 1.2N.m-4.0N.m

Name: Nema 11 Planetary Geared Stepper Motors With Gearbox Reducer Load Range 1.2N.m-4.0N.m
Brand: Umot
SKU: 28HS0405/28HS2401/28HS5401/28HS7401
Price: 31.98 USD
Availability: InStock
Rating: 4.6 (129 reviews)

Product Details

Place of Origin: China

Brand Name: Umot

Model Number: 28HS0405/28HS2401/28HS5401/28HS7401

Payment & Shipping Terms

Minimum Order Quantity: 5 pieces

Price: $31.98/pieces 5-99 pieces

Packaging Details: Foam+Hard Carton or Wooden Case+Waterproof film

Get Best Price

Product Details

Product Description

Highlight:

Warranty:	1year	Phase:	2
Type:	Hybrid	Current / Phase:	0.8/0.67/0.7/0.67A
Product Name:	Nema 11 Geared Stepper Motor	Product Brand:	Umot
Motor Size:	28mmx28mm	Holding Torque:	25m.Nm/70m.Nm/95m.Nm/110m.Nm
Motor Weight:	0.08-0.25kg	Rated Voltage:	2.8V/3.88V/4.9V/6.03V
Rated Current:	0.8/0.67/0.7/0.67A	Color:	Black Silver
Reduction Ratio:	3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1/189:1/264:1/369:1	Load Range:	1.2N.m-4.0N.m

Warranty:	1year
Phase:	2
Type:	Hybrid
Current / Phase:	0.8/0.67/0.7/0.67A
Product Name:	Nema 11 Geared Stepper Motor
Product Brand:	Umot
Motor Size:	28mmx28mm
Holding Torque:	25m.Nm/70m.Nm/95m.Nm/110m.Nm
Motor Weight:	0.08-0.25kg
Rated Voltage:	2.8V/3.88V/4.9V/6.03V
Rated Current:	0.8/0.67/0.7/0.67A
Color:	Black Silver
Reduction Ratio:	3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1/189:1/264:1/369:1
Load Range:	1.2N.m-4.0N.m

Nema 11 Planetary Geared Stepper Motors With Gearbox Reducer Load Range 1.2N.m-4.0N.m

Product Name	Nema 11 Gear Stepper Motor
Place of Origin	China
Brand Name	Umot
Model Number	28HS0405/2401/5401/7401
Phase	2 Phase
Type	Hybrid
Rated Current	0.8/0.67/0.7/0.67A
Rated Voltage	2.8/3.88/4.9/6.03V
Motor length	25/32/45/52mm
Ring material	Metal
Reduction ratio	3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1/189:1/264:1/369:1
Number of gear trains	1-4
Efficiency	66-90%
Bearing at output	Ball bearings
Gearbox torque	0.083-4N.m
