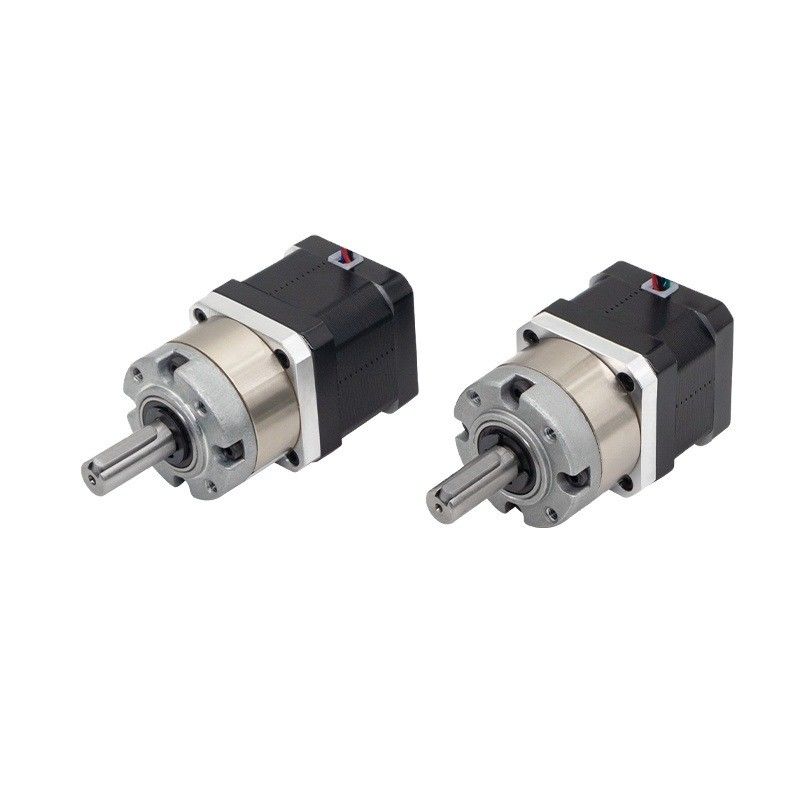

Nema 14 Micro Geared Stepper Motor With Planetary Gear Reducer Max.Ratio 1 139 Rated Current 1A

Name: Nema 14 Micro Geared Stepper Motor With Planetary Gear Reducer Max.Ratio 1 139 Rated Current 1A
Brand: Chongqing Umot Technology Co., Ltd.
SKU: 35HSH2408/5401
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Chongqing, China

Brand Name: Umot

Model Number: 35HSH2408/5401

Payment & Shipping Terms

Minimum Order Quantity: 5 pieces

Price: $31.69/pieces 5-99 pieces

Get Best Price

Product Details

Product Description

Highlight:

Warranty:	1 Year	Phase:	2
Type:	Hybrid	Current / Phase:	1A
Motor Length:	28/39mm	Ring Material:	Metal
Number Of Gear Trains:	1-4	Bearing At Output:	Ball Bearings
Gearbox Torque:	0.668-6N.m	Torque:	200/250m.Nm
Rated Current:	1A	Rated Voltage:	4.5V
Reduction Ratio:	3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1	Efficiency:	73-90%

Warranty:	1 Year
Phase:	2
Type:	Hybrid
Current / Phase:	1A
Motor Length:	28/39mm
Ring Material:	Metal
Number Of Gear Trains:	1-4
Bearing At Output:	Ball Bearings
Gearbox Torque:	0.668-6N.m
Torque:	200/250m.Nm
Rated Current:	1A
Rated Voltage:	4.5V
Reduction Ratio:	3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1
Efficiency:	73-90%

Nema 14 Micro Geared Stepper Motor With Planetary Gear Reducer Max.Ratio 1 139 Rated Current 1A

Item	Value
Product name	Planetary gearbox stepper motor
Model number	35HSH2408/35HSH5401
Motor type	Hybrid
Certification	CCC, ce, RoHS
Step angle	1.8°
Phase	2 Phase
Holding torque	200/250mN.m
Rated voltage	4.5V
Rated current	1.0A
Motor weight	0.15-0.25kg
Motor length	35mmx35mm
Load range	1.8N.m-6.0N.m
Efficiency	73%-90%
