Warranty:	1 Years	Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Printing Shops, Other
Weight (KG):	1.1 KG	Gearing Arrangement:	Planetary
Output Torque:	40N.m	Input Speed:	3000rpm
Output Speed:	75rpm	Product Name:	Reduction Ratio 40 Planetary Gearbox Reducer
Reduction Ratio:	1:40	Other Ratio:	Customized Ratio
Rated Output Torque:	40N.m	Rotor Inertia:	0.064kg.cm2
Noise:	≤65dB	Backlash:	≤15arcmin
Transmission Efficiency:	≥94%	Emergency Stop Torque:	Max Torque: 2 Times Of The Rated Torque
Applicable Motors:	For Size 60mm 400W AC Servo Motor

Warranty:	1 Years
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Printing Shops, Other
Weight (KG):	1.1 KG
Gearing Arrangement:	Planetary
Output Torque:	40N.m
Input Speed:	3000rpm
Output Speed:	75rpm
Product Name:	Reduction Ratio 40 Planetary Gearbox Reducer
Reduction Ratio:	1:40
Other Ratio:	Customized Ratio
Rated Output Torque:	40N.m
Rotor Inertia:	0.064kg.cm2
Noise:	≤65dB
Backlash:	≤15arcmin
Transmission Efficiency:	≥94%
Emergency Stop Torque:	Max Torque: 2 Times Of The Rated Torque
Applicable Motors:	For Size 60mm 400W AC Servo Motor

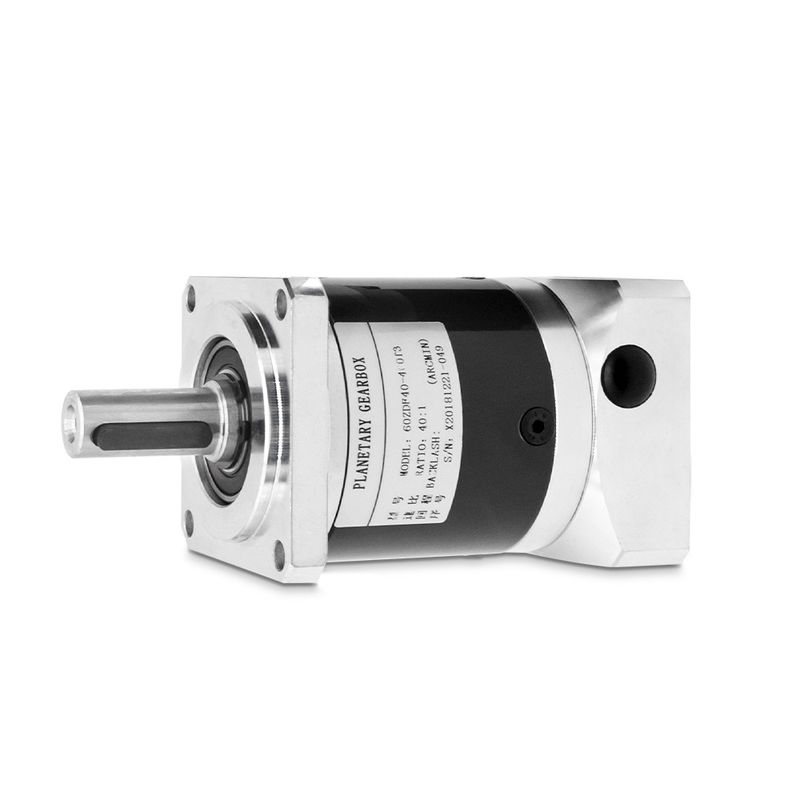

40 1 Reduction Ratio Planetary Speed Reducer Transmission for Customized Applications

400W Customized Ratio 40 Planetary Speed Reducer Transmission Gearbox Motor Transmission Reduction Gearbox Reducers For Panasonic Delta Simens

Item	Value
Product Name	Reduction Ratio 40 Planetary Gearbox Reducer
Motor Size	60mm ZDF
Applicable Motors	For Panasonic Delta Simens Size 60mm 400W AC Servo Motor
Reduction Ratio	1:40
Other Ratio	Customized Ratio
Rated Output Torque	40N.m
Rotor Inertia	0.064kg.cm2
Noise	≤65dB
Emergency Stop Torque	Max Torque: 2 Times of the Rated Torque
Backlash	≤15arcmin
Reduction Stage	2
Rated Input Speed	3000rpm
Peak Input Rpm	4500rpm
Maximum Radial Load	450N
Maximum Axial Load	340N
Degree Of Protection	IP54
Transmission Efficiency	≥94%
Weight	1.1kg
