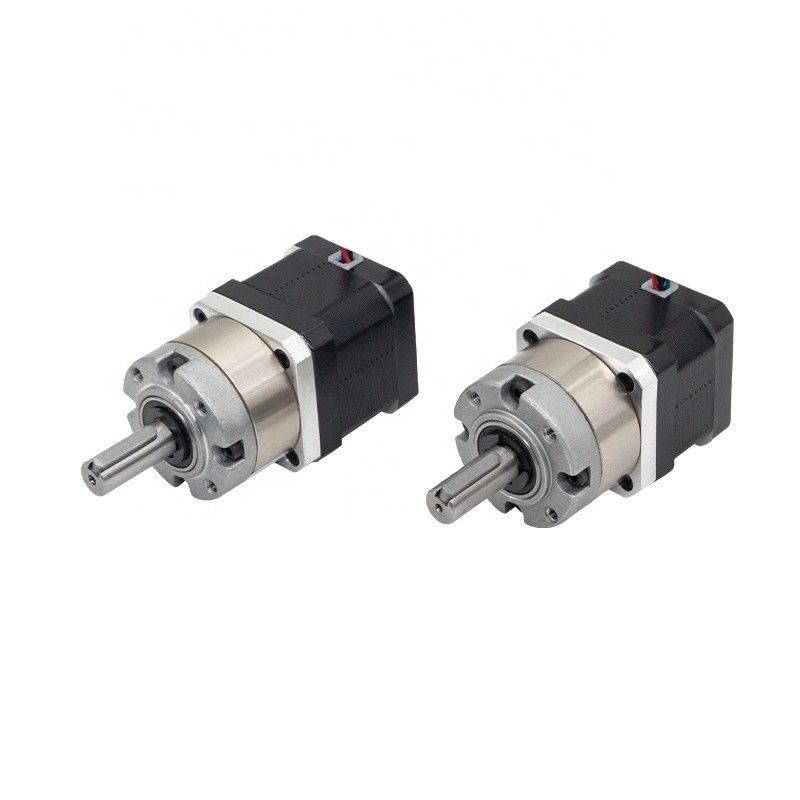

Nema 14 Hybrid Planetary Gearbox Stepper Motor With Reducer Holding Torque 200/250mN.m

Name: Nema 14 Hybrid Planetary Gearbox Stepper Motor With Reducer Holding Torque 200/250mN.m
Brand: Umot
SKU: 35HSH2408/35HSH5401
Price: 31.72 USD
Availability: InStock
Rating: 4.5 (127 reviews)

Product Details

Place of Origin: Chongqing, China

Brand Name: Umot

Model Number: 35HSH2408/35HSH5401

Payment & Shipping Terms

Minimum Order Quantity: 5 pieces

Price: $31.72/pieces 5-99 pieces

Get Best Price

Product Details

Product Description

Highlight:

Warranty:	1 Year	Phase:	2
Type:	Hybrid	Current / Phase:	1A
Product Name:	Nema 14 Geared Stepper Motor	Motor Length:	28/39mm
Ring Material:	Metal	Bearing At Output:	Ball Bearings
Holding Torque:	200m.Nm/250m.Nm	Gearbox Torque:	0.668-6N.m
Rated Current:	1A	Rated Voltage:	4.5V
Reduction Ratio:	3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1	Efficiency:	73-90%

Warranty:	1 Year
Phase:	2
Type:	Hybrid
Current / Phase:	1A
Product Name:	Nema 14 Geared Stepper Motor
Motor Length:	28/39mm
Ring Material:	Metal
Bearing At Output:	Ball Bearings
Holding Torque:	200m.Nm/250m.Nm
Gearbox Torque:	0.668-6N.m
Rated Current:	1A
Rated Voltage:	4.5V
Reduction Ratio:	3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1
Efficiency:	73-90%

Nema 14 Hybrid Planetary Gearbox Stepper Motor With Reducer Holding Torque 200/250mN.m

Umot Nema 14 35mm Hybrid Planetary Gear Stepping Motor Reducer Gearbox Stepper Motor With Gearbox

Product Name	35mm Nema14 Planetary Gearbox Stepper Motor
Brand Name	Umot
Model Number	35HSH2408/35HSH5401
Phase	2 Phase
Type	Hybrid
Certification	CCC, CE, RoHS
Step Angle	1.8°
Rated Current	1.0A
Rated Voltage	4.5V
Motor Weight	0.15/0.25kg
Motor Length	35mmx35mm
Load Range	1.8N.m-6.0N.m
Efficiency	73%-90%
