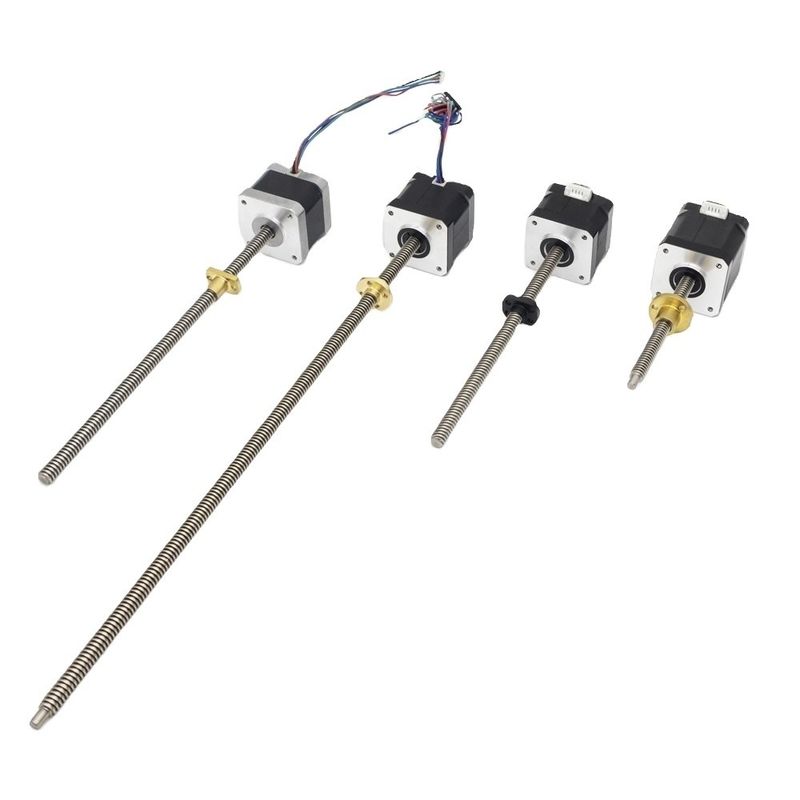

2-Phase Nema 17 Linear Stepper Motor with 1A/1A/1.68A/1.5A Current and Customized Screw

Name: 2-Phase Nema 17 Linear Stepper Motor with 1A/1A/1.68A/1.5A Current and Customized Screw
Brand: Chongqing Umot Technology Co., Ltd.
SKU: 42HSC1405/3401/4409/6401-XX
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Chongqing, China

Brand Name: Umot

Certification: CCC

Model Number: 42HSC1405/3401/4409/6401-XX

Payment & Shipping Terms

Minimum Order Quantity: 5 units

Price: $33.16/units 5-99 units

Get Best Price

Product Details

Product Description

Highlight:

Warranty:	1year	Phase:	2
Type:	Hybrid	Current / Phase:	1A/1A/1.68A/1.5A
Product Name:	Linear Lead Screw Stepper Motor	Motor Size:	Nema 17 42x42mm
Step Angle:	1.8°/0.9°	Rated Current:	1A/1A/1.68A/1.5A
Rotor Inertia:	35g.cm²/35g.cm²/55g.cm²/150g.cm²	Holding Torque:	380/320/400/520mN.m
Resistance:	7/2.2/1.65/3.2Ω	Temperature Rise:	80℃
Shape:	Square

Warranty:	1year
Phase:	2
Type:	Hybrid
Current / Phase:	1A/1A/1.68A/1.5A
Product Name:	Linear Lead Screw Stepper Motor
Motor Size:	Nema 17 42x42mm
Step Angle:	1.8°/0.9°
Rated Current:	1A/1A/1.68A/1.5A
Rotor Inertia:	35g.cm²/35g.cm²/55g.cm²/150g.cm²
Holding Torque:	380/320/400/520mN.m
Resistance:	7/2.2/1.65/3.2Ω
Temperature Rise:	80℃
Shape:	Square

2-Phase Nema 17 Linear Stepper Motor with 1A/1A/1.68A/1.5A Current and Customized Screw

Nema 17 Screw Lead Trapezoidal Thread Screw Linear Motion Stepper Motor Linear Actuator Lead Screw Linear Stepper Motor With Running Lead Screw

Product Name	Linear stepper motor
Warranty	1year
Place of Origin	China
Brand Name	Umot
Motor Size	Nema 17
Model Number	42HSC1405/3401/4409/6401-XX
Phase	2 Phase
Type	Hybrid
Current / Phase	1A/1A/1.5A/1.68A
Certification	CCC, ce, ISO, RoHS
Step angle	1.8°/0.9°
Size	42x34/42x38/42x40/42x48mm
Rotor inertia	35g.cm²/35g.cm²/55g.cm²/150g.cm²
Holding torque	380/320/400/520mN.m
Temperature rise	80℃
Shape	Square
