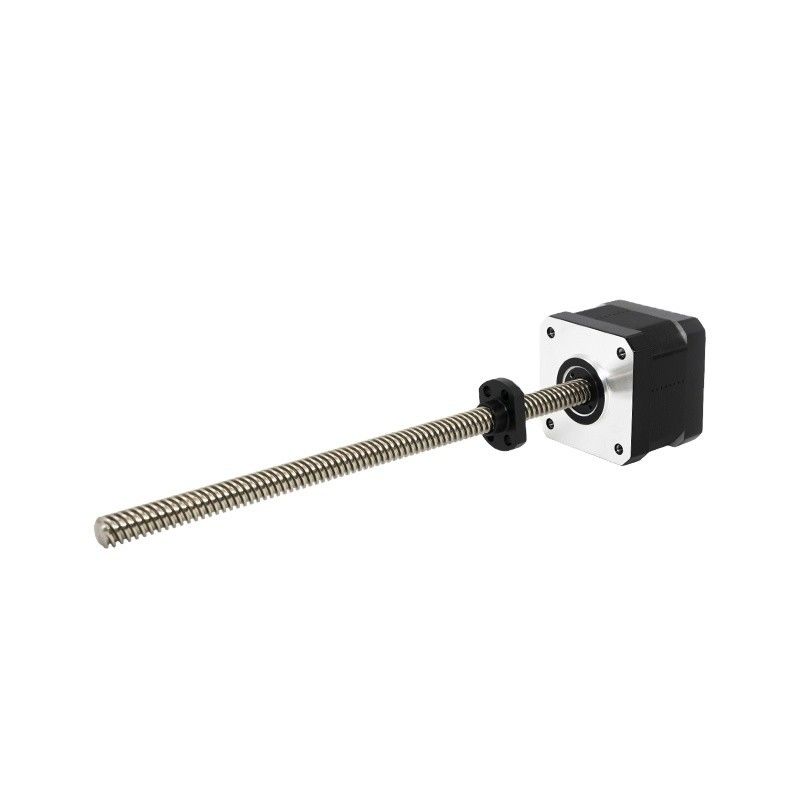

Hybrid Nema 17 Linear Lead Screw Stepper Motor with 380/320/400/520mN.m Holding Torque

Name: Hybrid Nema 17 Linear Lead Screw Stepper Motor with 380/320/400/520mN.m Holding Torque
Brand: Umot
SKU: 42HSC1405/3401/4409/6401-XX
Price: 33.18 USD
Availability: InStock
Rating: 4.7 (197 reviews)

Product Details

Place of Origin: Chongqing, China

Brand Name: Umot

Model Number: 42HSC1405/3401/4409/6401-XX

Payment & Shipping Terms

Minimum Order Quantity: 5 units

Price: $33.18/units 5-99 units

Get Best Price

Product Details

Product Description

Highlight:

Warranty:	1year	Phase:	2
Type:	Hybrid	Current / Phase:	1A/1A/1.65A/1.5A
Product Name:	Linear Stepper Motor	Step Angle:	1.8°
Rated Current:	1A/1A/1.65A/1.5A	Size:	42x42mm
Motor Length:	34/38/40/48mm	Rotor Inertia:	35g.cm²/35g.cm²/55g.cm²/150g.cm²
Holding Torque:	380/320/400/520mN.m	Resistance:	7/2.2/1.65/3.2Ω
Temperature Rise:	80℃	Shape:	Square

Warranty:	1year
Phase:	2
Type:	Hybrid
Current / Phase:	1A/1A/1.65A/1.5A
Product Name:	Linear Stepper Motor
Step Angle:	1.8°
Rated Current:	1A/1A/1.65A/1.5A
Size:	42x42mm
Motor Length:	34/38/40/48mm
Rotor Inertia:	35g.cm²/35g.cm²/55g.cm²/150g.cm²
Holding Torque:	380/320/400/520mN.m
Resistance:	7/2.2/1.65/3.2Ω
Temperature Rise:	80℃
Shape:	Square

Hybrid Nema 17 Linear Lead Screw Stepper Motor with 380/320/400/520mN.m Holding Torque

Mini Hybrid Micro Screw Shaft Linear Motion Stepper Motor Nema 17 42mm Linear Lead Screw Stepper Motor

Product name	Linear stepper motor
Warranty	1year
Place of origin	China
Brand name	Umot
Model number	42HSC1405/3401/4409/6401-XX
Phase	2 Phase
Type	Hybrid
Rated current	1A/1A/1.68A/1.5A
Certification	CCC, ce, ISO, RoHS
Step angle	1.8°
Size	42x34/42x38/42x40/42x48mm
Rotor inertia	35g.cm²/35g.cm²/55g.cm²/150g.cm²
Holding torque	380/320/400/520mN.m
Temperature rise	80℃
Shape	Square
